Premium

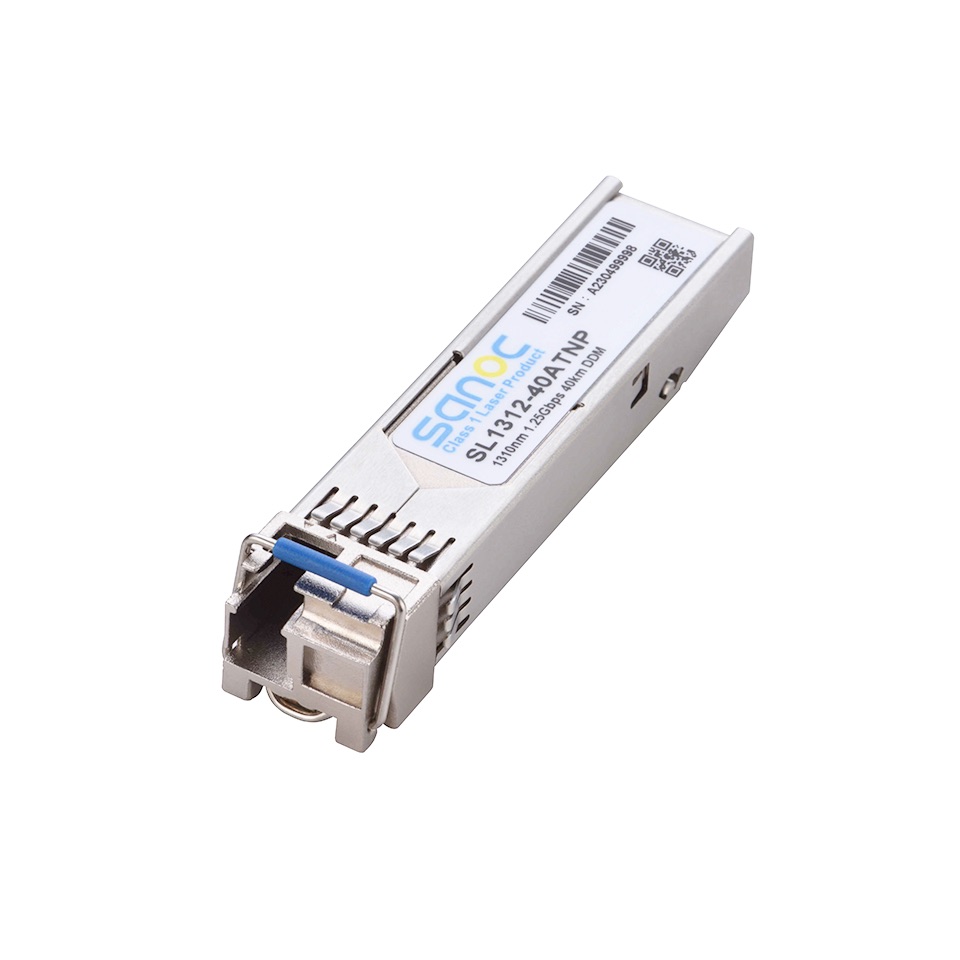

BiDi SFP Transceivers
High-performance bidirectional modules utilizing WDM technology to transmit and receive data over a single fiber, providing cost-effective and efficient network solutions.
Backed by Sanoc's 20+ years of expertise in optical communication technology
1.25 Gbps
850nm-1550nm
Up to 160km
LC Duplex
Our BiDi SFP modules deliver consistent performance with minimal signal loss across all operating conditions.
BiDi SFP Specifications
Comprehensive technical specifications for our BiDi SFP transceiver modules.
| Parameter | Specification |
|---|---|
| Data Rate | 1.25 Gbps |
| Wavelength | 850nm, 1310nm, 1550nm |
| Transmission Distance | ・850nm: Up to 550m (MMF) ・1310nm: Up to 10km (SMF) ・1310nm: Up to 40km (SMF) ・1550nm: Up to 80km (SMF) ・1550nm: Up to 120km (SMF) |
| Operating Temperature | 0°C to 70°C (Commercial) -40°C to 85°C (Industrial, optional) -40°C to 105°C (Extended Industrial, optional) |
| Supply Voltage | 3.3V ±5% |
| Power Consumption | Typically < 1W |
| Connector Type | LC Duplex |
| Compliance | IEEE 802.3z SFP Multi-Source Agreement (MSA) RoHS-6 compliant |
| Dimensions | 56.5mm x 13.4mm x 8.5mm |
Need detailed technical datasheet? Contact us
Key Features & Advantages
Why Sanoc’s BiDi SFP transceivers stand out from the competition.
Compatibility
Compatible with major networking equipment brands including Cisco, HPE, Aruba, Arista, Huawei, Juniper, and more.
Exceptional Reliability
Built with high-quality components and rigorous testing to ensure reliable operation in demanding environments.
TAA Compliant
Made in Taiwan with certified compliance, and delivering consistent quality for international procurement and secure supply chains.
Hot-Pluggable Design
Allows for easy installation and replacement without powering down the network equipment.
Temperature Resilience
Available in commercial and industrial temperature ranges to suit various deployment environments.
Low Power Consumption
Energy-efficient design reduces power usage and heat generation, lowering operational costs.
Ideal Applications
Sanoc’s BiDi SFP transceivers are designed for a wide range of networking applications.
Data Centers
High-density 1Gbps connections between servers, storage, and network switches.
Enterprise Networks
Reliable backbone connections for office networks and campus environments.
FTTH & IPTV
High-quality video streaming and broadband service delivery.
Industrial Networks
Rugged solutions for factory automation and industrial Ethernet applications.
Quality Assurance
Every Sanoc BiDi SFP transceiver undergoes rigorous testing throughout the manufacturing process, including environmental stress screening, optical performance testing, and reliability validation. Our modules are backed by a comprehensive warranty and technical support.
What Our Clients Say
Hear from networking professionals who trust Sanoc transceivers in their infrastructure.
Frequently Asked Questions
Common questions about our BiDi SFP transceivers
Are Sanoc's BiDi SFP transceivers compatible with equipment from other brands?
Yes, our BiDi SFP transceivers are designed to be fully compatible with major networking equipment brands, including Cisco, Dell, Huawei, Juniper, and others. They comply with the SFP Multi-Source Agreement (MSA) and IEEE 802.3z standards, ensuring seamless integration into existing network infrastructures.
What is the difference between commercial and industrial temperature range modules?
Our commercial grade BiDi SFP modules operate reliably within 0°C to 70°C, suitable for standard office and data center environments. For harsh conditions, we offer industrial grade options that function in -40°C to 85°C, ideal for factory automation, outdoor installations, or extreme temperature environments.
How long is the warranty period for Sanoc's BiDi SFP transceivers?
All our BiDi SFP transceivers come with a standard 3-year warranty from the date of delivery. This covers manufacturing defects and performance issues under normal operating conditions. Extended warranty options are available upon request for bulk orders.
Can I get custom configurations for specific transmission distances or wavelengths?
Absolutely. While we offer standard BiDi SFP modules with wavelengths (850nm, 1310nm, 1550nm) and distances (up to 120km), we also provide custom configurations to meet unique project requirements. Contact our technical team with your specific needs, and we’ll develop a tailored solution.
What testing procedures do Sanoc's BiDi SFP transceivers undergo before shipment?
Each module undergoes rigorous testing, including optical performance validation (power, sensitivity, extinction ratio), environmental stress screening (temperature cycling, humidity testing), and reliability checks (vibration, shock resistance). We also conduct compatibility tests with major equipment brands to ensure plug-and-play functionality.
