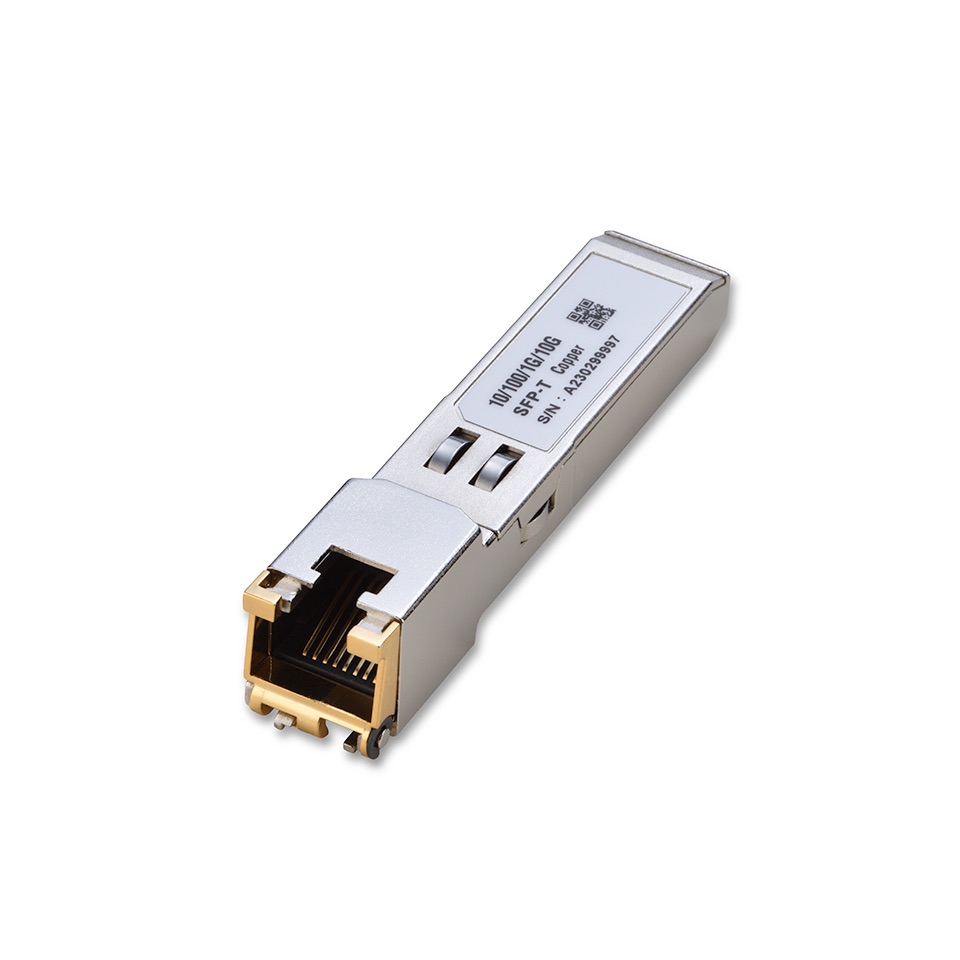

1000Base-T SFP RJ-45 Copper Transceiver
High-performance interconnect solution for data centers and enterprise networks, delivering reliable 1Gbps connectivity over twisted-pair cabling.
Industry-Leading 1000Base-T SFP Solutions
Sanoc’s 1000Base-T SFP transceivers represent the perfect combination of performance, reliability, and value for your network infrastructure.
The 1000Base-T SFP RJ-45 Copper module is widely used in data centers and enterprise environments, providing high-performance interconnectivity. This module supports CAT5e twisted-pair cables with a maximum transmission distance of 100 meters and data transfer rates up to 1Gbps.
Our 1000Base-T SFP transceiver offers a cost-effective solution for extending network reach while maintaining reliable performance. Its compact form factor allows for high-density installations, making it ideal for space-constrained environments.
With a low power consumption design of only 1.05W for 100m transmission, this transceiver helps reduce overall energy costs in large-scale deployments without compromising on performance.
Backed by Sanoc's 20+ years of expertise in optical communication technology
1.25 Gbps
Cat 5e/Cat 6
Up to 100m
RJ-45 Copper
Reliable 1Gbps data transmission with minimal latency for critical applications.
1000Base-T SFP RJ-45 Copper Specifications
Comprehensive technical specifications for our 1000Base-T SFP transceiver modules.
| Parameter | Specification |
|---|---|
| Data Rate | 1.25 Gbps |
| Transmission Distance | Up to 100m |
| Operating Temperature | 0°C to 70°C (Commercial) -40°C to 85°C (Industrial, optional) |
| Supply Voltage | 3.3V ±5% |
| Power Consumption | Typically < 1W |
| Connector Type | RJ-45 Copper |
| Compliance | IEEE 802.3, IEEE 802.3ab SFP Multi-Source Agreement (MSA) RoHS-6 compliant |
| Dimensions | 56.5mm x 13.4mm x 8.5mm |
Need detailed technical datasheet? Contact us
Key Features & Advantages
Why Sanoc’s 1000Base-T SFP RJ-45 Copper transceivers stand out from the competition.
Compatibility
Compatible with major networking equipment brands including Cisco, HPE, Aruba, Arista, Huawei, Juniper, and more.
Exceptional Reliability
Built with high-quality components and rigorous testing to ensure reliable operation in demanding environments.
TAA Compliant
Made in Taiwan with certified compliance, and delivering consistent quality for international procurement and secure supply chains.
Hot-Pluggable Design
Allows for easy installation and replacement without powering down the network equipment.
Temperature Resilience
Available in commercial and industrial temperature ranges to suit various deployment environments.
Low Power Consumption
Energy-efficient design reduces power usage and heat generation, lowering operational costs.
Ideal Applications
Sanoc’s 1000Base-T SFP transceivers are designed for a wide range of networking applications.
Data Centers
High-density 1Gbps connections between servers, storage, and network switches.
Enterprise Networks
Reliable backbone connections for office networks and campus environments.
FTTH & IPTV
High-quality video streaming and broadband service delivery.
Industrial Networks
Rugged solutions for factory automation and industrial Ethernet applications.
Quality Assurance
Every Sanoc 1000Base-T SFP RJ-45 Copper transceiver undergoes rigorous testing throughout the manufacturing process, including environmental stress screening, optical performance testing, and reliability validation. Our modules are backed by a comprehensive warranty and technical support.
What Our Clients Say
Hear from networking professionals who trust Sanoc transceivers in their infrastructure.
Frequently Asked Questions
Common questions about our 1000Base-T SFP RJ-45 Copper transceivers
Are Sanoc's 1000Base-T SFP RJ-45 Copper transceivers compatible with equipment from other brands?
Yes, our 1000Base-T SFP RJ-45 Copper transceivers are designed to be fully compatible with major networking equipment brands, including Cisco, Dell, Huawei, Juniper, and others. They comply with the SFP Multi-Source Agreement (MSA) and IEEE 802.3 and IEEE 802.3ab standards, ensuring seamless integration into existing network infrastructures.
What is the difference between commercial and industrial temperature range modules?
Our commercial grade 1000Base-T SFP RJ-45 Copper modules operate reliably within 0°C to 70°C, suitable for standard office and data center environments. For harsh conditions, we offer industrial grade options that function in -40°C to 85°C, ideal for factory automation, outdoor installations, or extreme temperature environments.
How long is the warranty period for Sanoc's 1000Base-T SFP RJ-45 Copper transceivers?
All our 1000Base-T SFP RJ-45 Copper transceivers come with a standard 3-year warranty from the date of delivery. This covers manufacturing defects and performance issues under normal operating conditions. Extended warranty options are available upon request for bulk orders.
Can I get custom configurations for specific transmission distances?
Absolutely. While our standard 1000Base-T SFP modules deliver 1.25Gbps connectivity up to 100 meters over CAT5e cabling with 1W power consumption, we also provide customized solutions for your request.
What testing procedures do Sanoc's 1000Base-T SFP RJ-45 Copper transceivers undergo before shipment?
Each module undergoes rigorous testing, including optical performance validation (power, sensitivity, extinction ratio), environmental stress screening (temperature cycling, humidity testing), and reliability checks (vibration, shock resistance). We also conduct compatibility tests with major equipment brands to ensure plug-and-play functionality.
